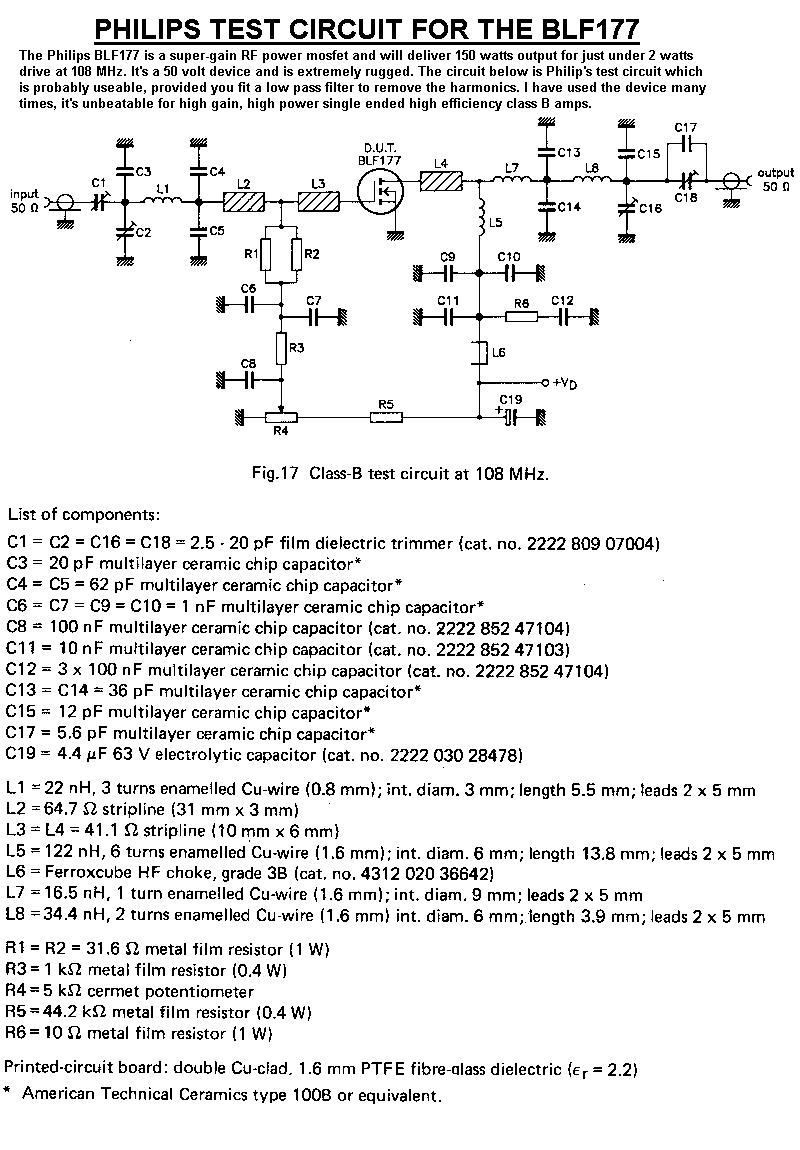

150 Watt BLF177 MOSFET Transistor Test Circuit

This circuit diagram is the one issued by Philips Semiconductors as the one they used for testing the BLF177 RF Device For Gain and Power Output. I have to point out that some of the values for capacitors on the output side look a little on the low value side.

The Philips BLF177 RF Power Mosfet is available from NRG Kits, RF Components page
